BSD7

Producing firm and clear rear camera
is protecting the worker.


  • 상품간략정보 및 구매기능


    Installation possible vehicle 트럭,버스,특장차,승합,승용차
    Connection wire 무선
    Certification KC
    Used voltage 12V / 24V 겸용
    Pixel 200만화소
    Viewing angle 155도
    Waterproof I

    Product Overview

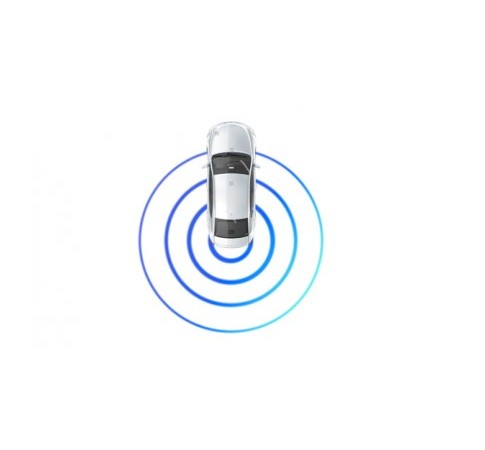

    Obstacle is detected using an ultrasonic sensor so that the driver can monitor the distance of the front(or rear) situations while driving the vehicle or heavy equipments.


    As a product applicable for large vehicles, it is equipped with error-preventing patented technology to prevent any detection error that may occur due to noise generated large-sized power supply, thereby ensuring stable detection power.


    It senses the obstacles located in the rear side of the vehicle when the vehicle is moving in reverse, indicating the right and left situations using the individual warning lights such as LED lights.


    It senses minimum distance of 30cm and maximum distance of 2(~3)m, indicating the alarming status to the driver with 4 types of beeping sounds.


    Two types of sensors can be installed depending on the structure of the vehicle: attached type, embedded type. Attached type is easy to install or relocate using the magnets. Embedded type is easily inserted using the bracket bushing, with two bracket options of fixed bracket and angle adjustable bracket.


    The sensor is completely waterproof and dustproof. When installing the control box outside of the vehicle, separate waterproof case is installed for operation.


    In addition, it offers various optional functions when equipping GPS such as speed limit alarm function, flashing warning light function, two-way wireless alarm call function, microphone function, etc.

    Product Specifications

    ITEM BSD7
    Working Voltage 12V,24V(+7V~ +40V)
    Power consumption 1W MAX(max.150mA)
    Operating temperature -30˚~+70˚
    Sensing distance 30cm ~ 3M(basic) ~ maximum 5M(OPTION)
    Channel used Basic 2CH, (option3~6cH)
    Alarm display Basic 2~4LAMP RED LAMP Indicator
