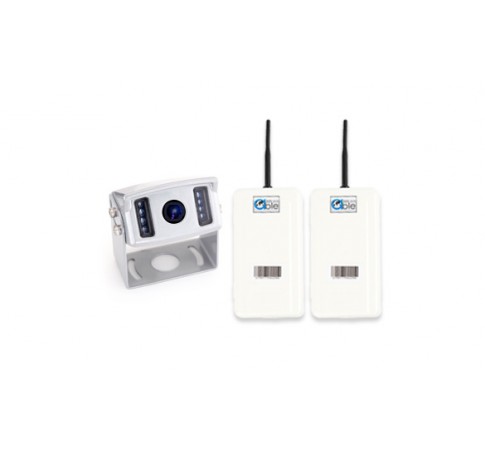

RCS4000R

Producing firm and clear rear camera
is protecting the worker.


  • 상품간략정보 및 구매기능


    Installation possible vehicle 트럭,버스,특장차,승합,승용차
    Connection wire 무선
    Certification KC
    Used voltage 12V / 24V 겸용
    Pixel 200만화소
    Viewing angle 155도
    Waterproof I

    Product Overview

    Abletech’s rear camera provides sharp picture quality to offer safe driving experience to the driver by securing driver’s vision and surrounding monitoring.

    You can see the clear vision through rear screen with the high durability, even in rough external work environment.


    Abletech has developed the following features to become the leader of wireless rear camera technology. RCS4000 rear camera offers vivid coloration

    compared to competitors’ products, and the enclosure material is made of zinc to offer corrosion resistant.


    Therefore, it can be used for a long time without being influenced by external environment.In addition,

    the white color is beautiful to look at when installed in camper trailer.


    · Screen resolution: Produce bright screen with high resolution of 52 mega pixels.

    · Viewing Angle: features an excellent viewing angle of 155 degree

    · Enclosure material: lifetime of more than 10 years due to the zinc material which has strong resistance to corrosion.

    · Genuine Domestic: Abletech who has the patented technology produces within Korea and supplies.

    Product Specifications

    ITEM RCS 4000R
    Image Sensor 1/4” CMOS OR CCD, [ High Sensitivity ] 32K Pixels ( Opt. 38k/41K )
    Effective Pixel [ H ] 510 x [ V ] 492 [ NTSC ] / [ H ] 500 x [ V ] 582 [ PAL ]
    Scanning System 2:1 Interlacing / 525 Lines [ NTSC ], 625 Lines [ PAL ]
    Sync. System Internal Sync
    Scanning Frequency NTSC : [ H ] 15.734 KHz x [ V ] 59.94 Hz
    PAL : [ H ] 15.625 KHz x [ V ] 50 Hz
    Horizontal Resolution More Than 380 TV Lines
    Video Output VBS 1.0 Vp-p ± 10% / 75Ω
    S/N Ratio 40 dB Min [ ACC off, Y signal ]
    Min. Illumination 0.1 Lux at F 2.0 AGC ON
    Lens f-2.9mm, View 170˚ [ Dia. ] ( Opt. 120˚ )
    Gain Control Autormalic Gain Control
    Gamma 0.45
    Shutter Speed Electronic Auto Iris
    1/50 ~ 1/100,000 : PAL/1/60 ~ 1/100,000 : NTSC
    Input Voltage DC 12V, 40mA MAX
    Ambient Temperature - 20˚C ~ 70˚C, 85% RH
    Mirror ON / OFF
    BLC YES
    IR LED 850nm IR LEDs 5EA / CDS Sensor 1EA
    Night View Distance Outdoor5m ~
    Housing Color Black, Silver
    Connector S-Pin Din, 5.5mm Dc Jack, RCA(m)
    Weight Approx, 154g
    IP Resistance Certified IP 69 Level
    Approval CE, FCC, e-mark
